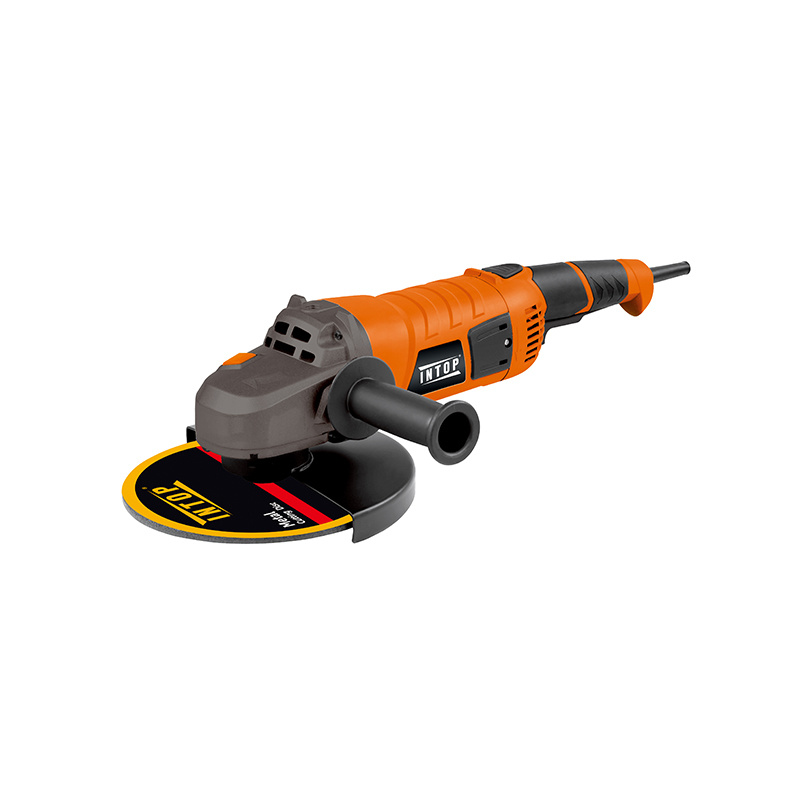

2350W 230mm Heavy-Duty Electric Angle Grinder – S1M-TD-230B3
S1M-TD-230B3 2350W Heavy-Duty Angle Grinder with a 230mm disc is designed for demanding cutting, grinding and metalworking applications. It features an adjustable rear handle, three-position auxiliary handle, spindle lock and easy-access carbon brush cap for improved control, convenience and maintenance.
The S1M-TD-230B3 Heavy-Duty Angle Grinder delivers 2350W of power for professional grinding and cutting applications. Designed around a large 230mm disc, this electric angle grinder is suitable for demanding work in construction, metal fabrication, workshops and industrial environments.
Its adjustable rear handle with up to ±90° rotation provides greater flexibility and operator control, while the three-position auxiliary handle allows users to select a comfortable working position. The integrated spindle lock simplifies disc changes, and the specially designed carbon brush cap provides easier access for maintenance and carbon brush replacement.
Key Features
- 2350W powerful motor for demanding applications
- 230mm (9-inch) disc capacity for heavy-duty grinding and cutting
- Adjustable rear handle ±90° for improved handling and flexibility
- Three-position auxiliary handle for enhanced operator control
- Spindle lock for convenient disc replacement
- Easy-access carbon brush cap for simpler maintenance
- Suitable for construction, metalworking, fabrication and industrial applications
- Available for customized and OEM orders
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1M-TD-230B3 |
| Product Type | Angle Grinder |
| Power Input | 2350W |
| Voltage | 230V / 110V |
| Frequency | 50Hz / 60Hz |
| Disc Diameter | 230mm / 9″ |
| No-Load Speed | 6,300 RPM |
| Net Weight | 6.5 kg |
| Rear Handle | Adjustable ±90° |
| Auxiliary Handle | 3-position |
| Spindle Lock | Yes |
| Packaging | Color Box + Shipping Carton |
| Carton Dimensions | 570 × 340 × 145mm |
| Carton Volume | 0.028 m³ |
| Quantity per Carton | 2 pcs |
| Carton N.W. / G.W. | 12.9 / 13.5 kg |
| 20′ Container Capacity | Approx. 1,793 pcs |
| 40′ HC Container Capacity | Approx. 4,640 pcs |
| Customization | Available |
